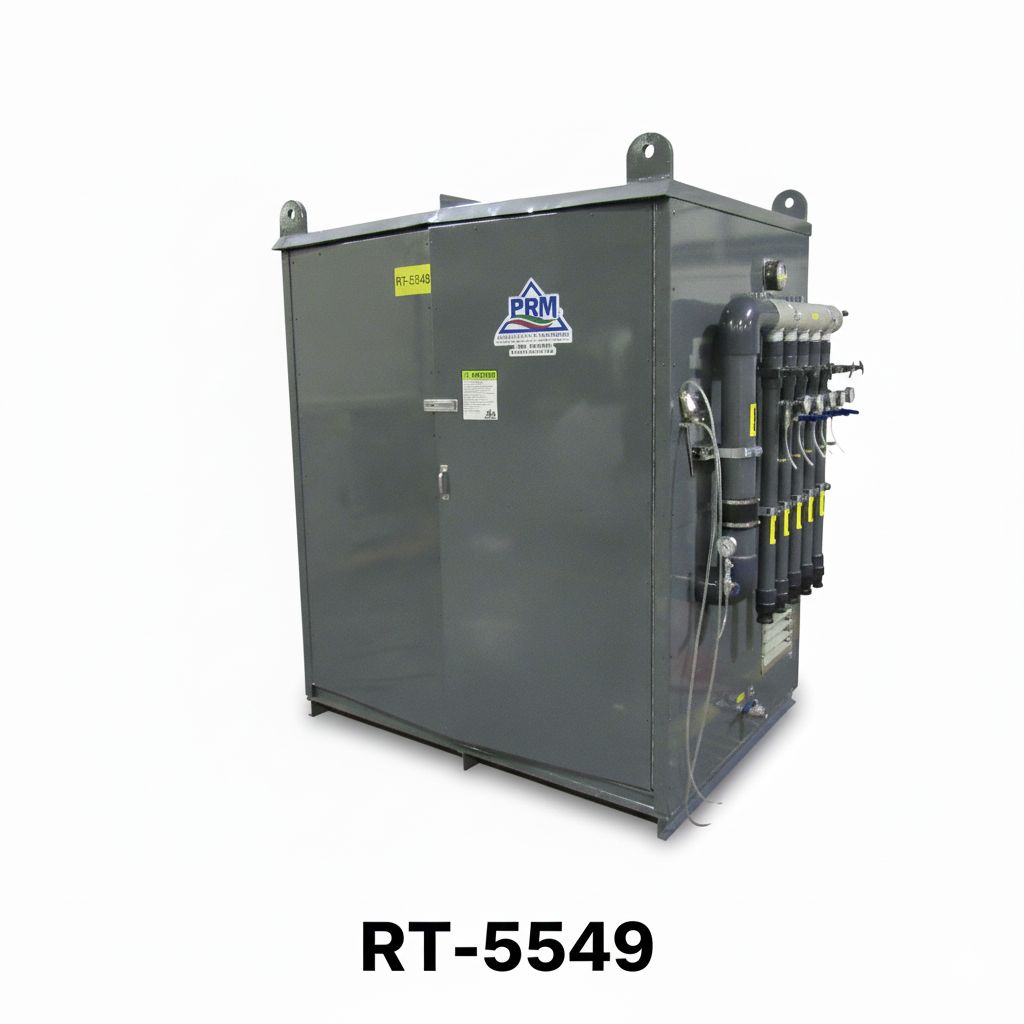

RT5549 Details
SVE/ Air Sparge System in small steel enclosure
SVE
SVE Package:
- ZZ5M Rotary Lobe Vacuum Blower, 165 CFM @ 12”Hg
- 15 HP motor
- MS-80 MS Tank
- VP-55 Carbon Vessels
Air Sparge Equipment:
- (3) 2 HP 1600-MG Oil-Free Compressors, 13 CFM @ 78 psig
- HX 1240 Cooler
Controls and System Rating
- Siemens LOGO PLC with door mounted TDE display
- ABB ACS 355 Variable Frequency Drive
- Sensaphone Sentinel installed for telemetry
- Door mounted HOA Switches for starting SVE Blower and MS Pump
- System is 3rd Party Certified
- System Rating: 120/230V, 3 phase, 200 Amps
