RT5846 Details
RT5846 Rental AS/SVE Trailer
AS/SVE Trailer

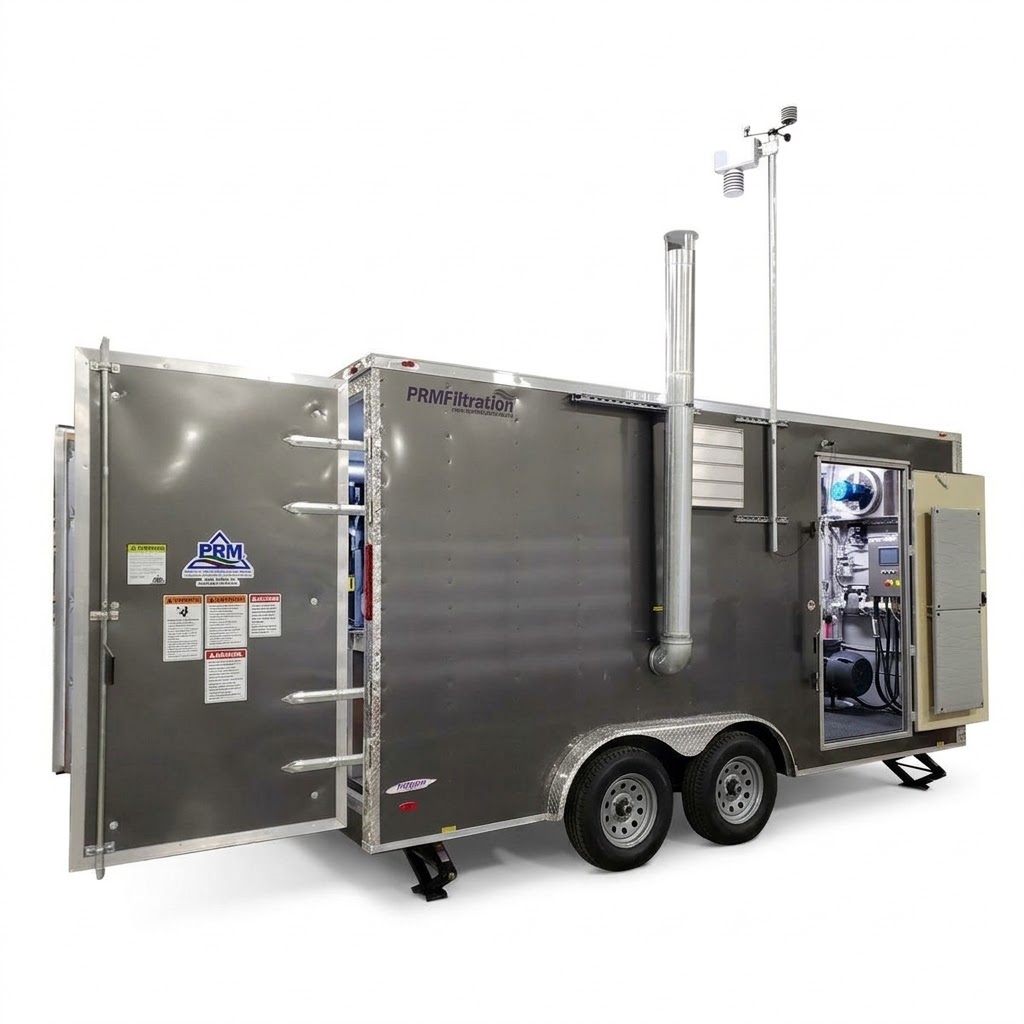

SVE and Air Sparge Extraction System, 8' x 16' enclosed trailer
SVE Capabilities
- ZZ4L Rotary Lobe Vacuum Blower
- 425 CFM @ 6”Hg (90” WC)
- 10 HP 230V 3ph TEFC motor
Air Sparge Capabilities
- CA7L Rotary Claw Compressor
- 129 SCFM @ 24 psig
- 25 HP 230V 3ph TEFC motor
- (16) 1” Sparge Legs with Rotameters
Controls
- NEMA 4/12 UL Listed 3rd Party Certified Control Panel
- PLC Controller with wireless connectivity and remote login
- SCADA full remote system control with data and event logging
- System Rating: 120/208-230V, 3 phase, 200 Amps
- Interior of Process room rated for Class 1, Division 2 Hazardous Locations
