RT6000 Details

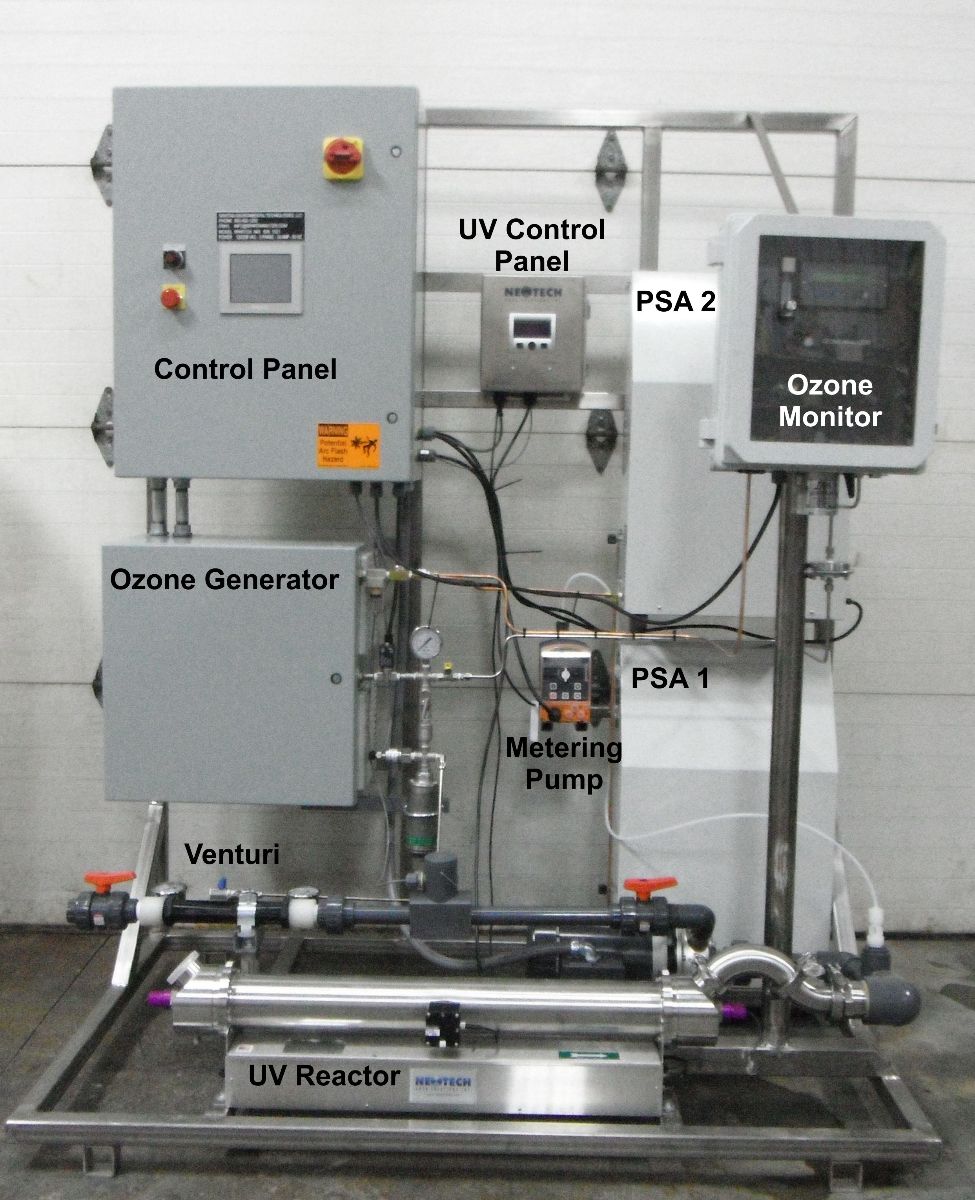

Spartox A60 AOP Ozone Treatment System

Ozone

Plasma Technics solid state ozone generator producing up to 60 g/hr ozone at ~9% by w.t.
Output power level control 0-100%
Stainless steel needle valve, check valve, solenoid & pressure gauge for flow/backpressure control.
Ambient Oxygen and Ozone Sensors for Safety with 4-20 mA output to PLC

Two (2) Topaz Ultra oxygen concentrators each provide up to 95% oxygen.
Acrylic block oxygen flow meters w/ needle valve and O2 rated pressure gauge for fine tuned O2 flow control.
0.01 micron gas filter

Ebara 208-230V 1.5 HP, 3-phase, 60 hz. TEFC SS centrifugal booster pump
Mazzei PVDF venturi for ozone transference into process stream (sized for application)
Sch. 80 PVC transfer piping and true union ball valves for flow control.
One (1) 1-in electromagnetic PTFE lined SS flow transmitter
Back flow prevention system including check valve, vacuum/pressure transmitter interlocked with solenoid valve and liquid trap.
100 gal. vertical poly ozone/peroxide contact tank w/ mixing nozzle

NeoTech Aqua RefleX D338 UV Chamber
Patented technology to reflect 99.8% of 254 nm UV generated back into the chamber flow.
Flow Rate (max): 225 (51.1) gpm (m3/hr.), 95% UVT @ 30mJ/cm2
Dedicated controller

NEMA 4 painted steel enclosure with forced air ventilation
Pro-face (Model LT3300) PLC with touch screen display
Motor starter, relays, fuses and temperature thermocouple mounted inside panel
Main power disconnect and control panel door interlock, pilot & fault LEDs and e-stop button

Entire system is mounted to a 304 SS tubular skid with stanchion mounted control panel & metering pump
Operation and maintenance manual with digital copy
Skid System Power Requirements as Configured: 120/208V, 3-Phase, 60 Hz, 30 FLA
*Does not include any climate controlled enclosure power requirements
