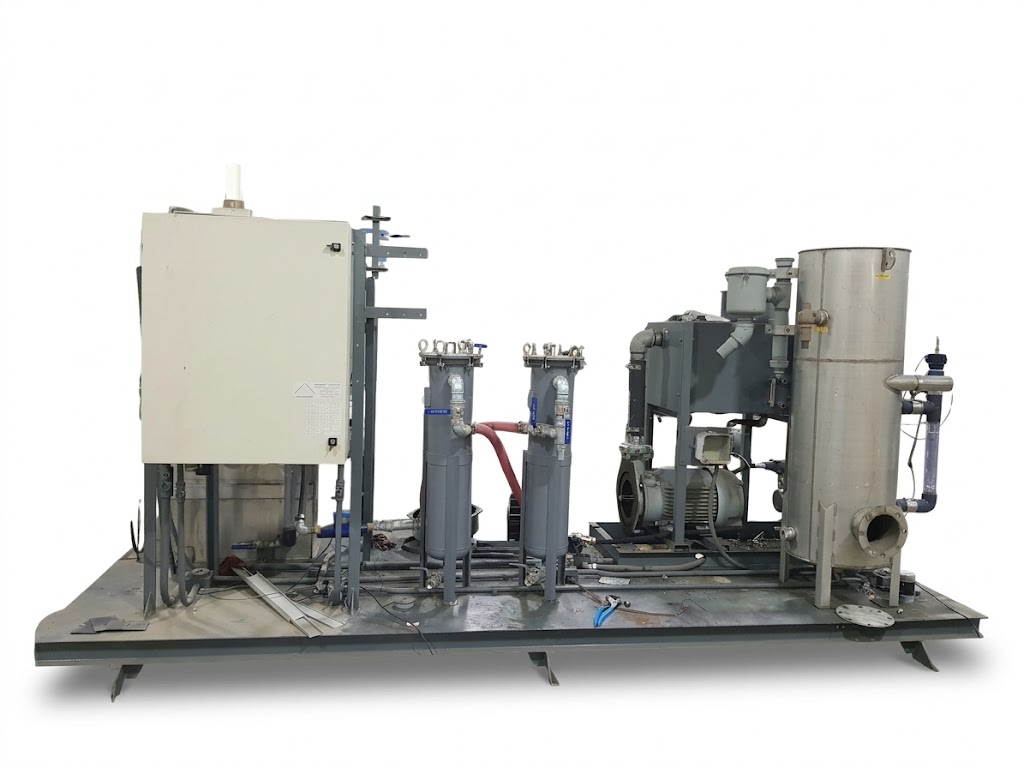

RT6520 Details
Dual Phase Extraction System
Water TreatmentAS/SVE
DPE Package
- Atlantic Fluids A200 Liquid Ring Pump coupled to a 15Hp 230/460V 3ph TEFC motor
- Rated for minimum 200 ACFM @ 25" Hg
- MS-80 Aluminum Moisture separator with high float switches
- Effluent pump and 1/2" Stainless Steel flow totalizer with Viton O-rings
- PRM 130 series Air Stripper with process blower and pump out of 10gpm
- (2) #2 bag filter housings
- 480V Transformer
- Schulz 200psi Compressor
Controls
- Nema 4/12 system control Panel
- PLC controller with wireless connectivity and remote login capabilities, Email on alarm functionality
- Includes Telemetry Service, No configuration required by Client
- Includes all motor starters, HOA switches and IS safety barriers as required
